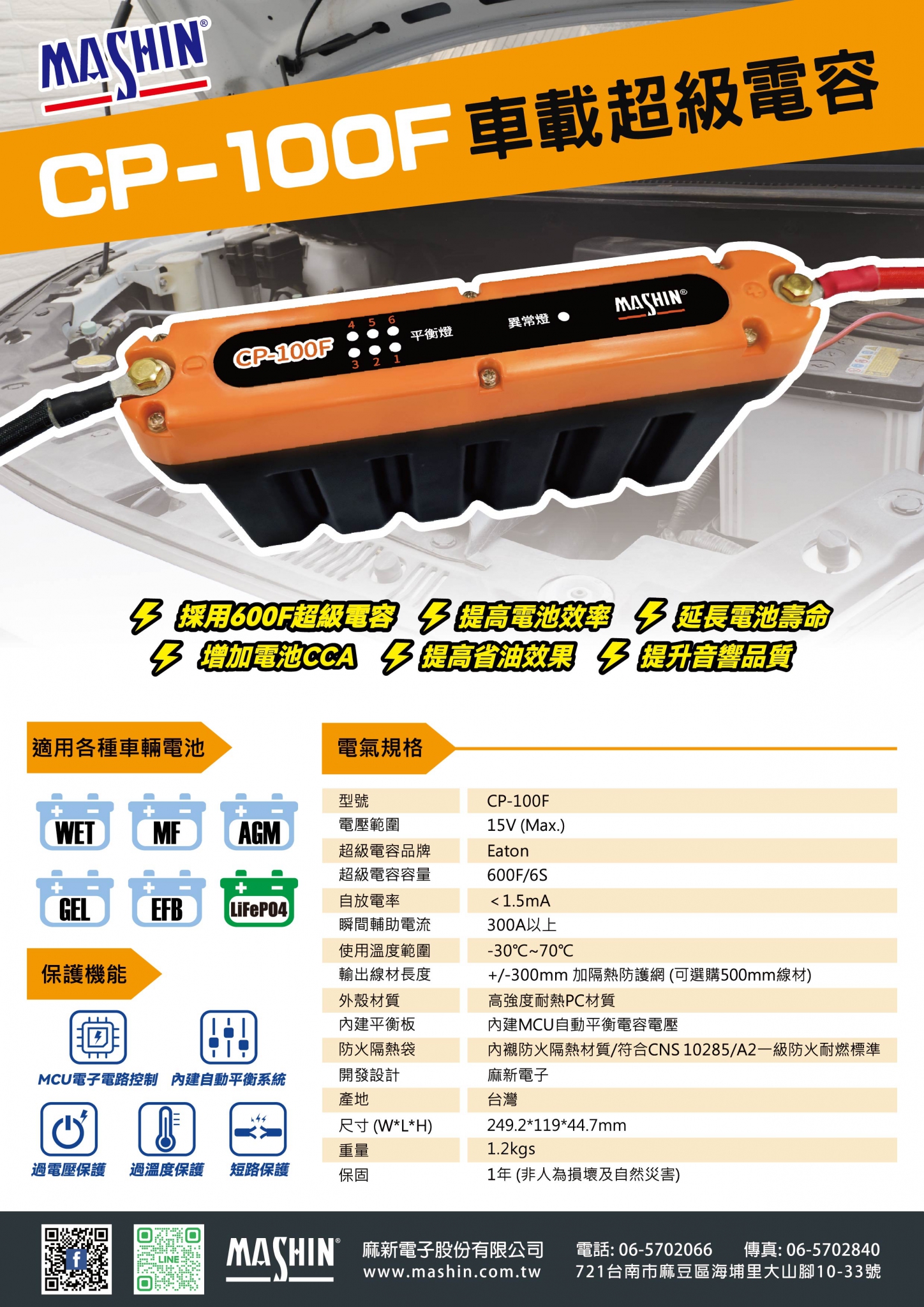

CP-100F AUTOMOTIVE SUPER CAPACITOR
CP-100F
- Vehicle
- BatteryWET Battery MF Battery AGM Battery EFB Battery LiFePO4 Battery
Description
Product
Product Features
◎ 600F Super Capacitor
◎ Improve Fuel Efficiency
◎ Extend Car Battery Service Life
◎ Enhance Car Battery CCA
◎ Enhance Car Battery Efficiency
◎ Enhance Audio Quality

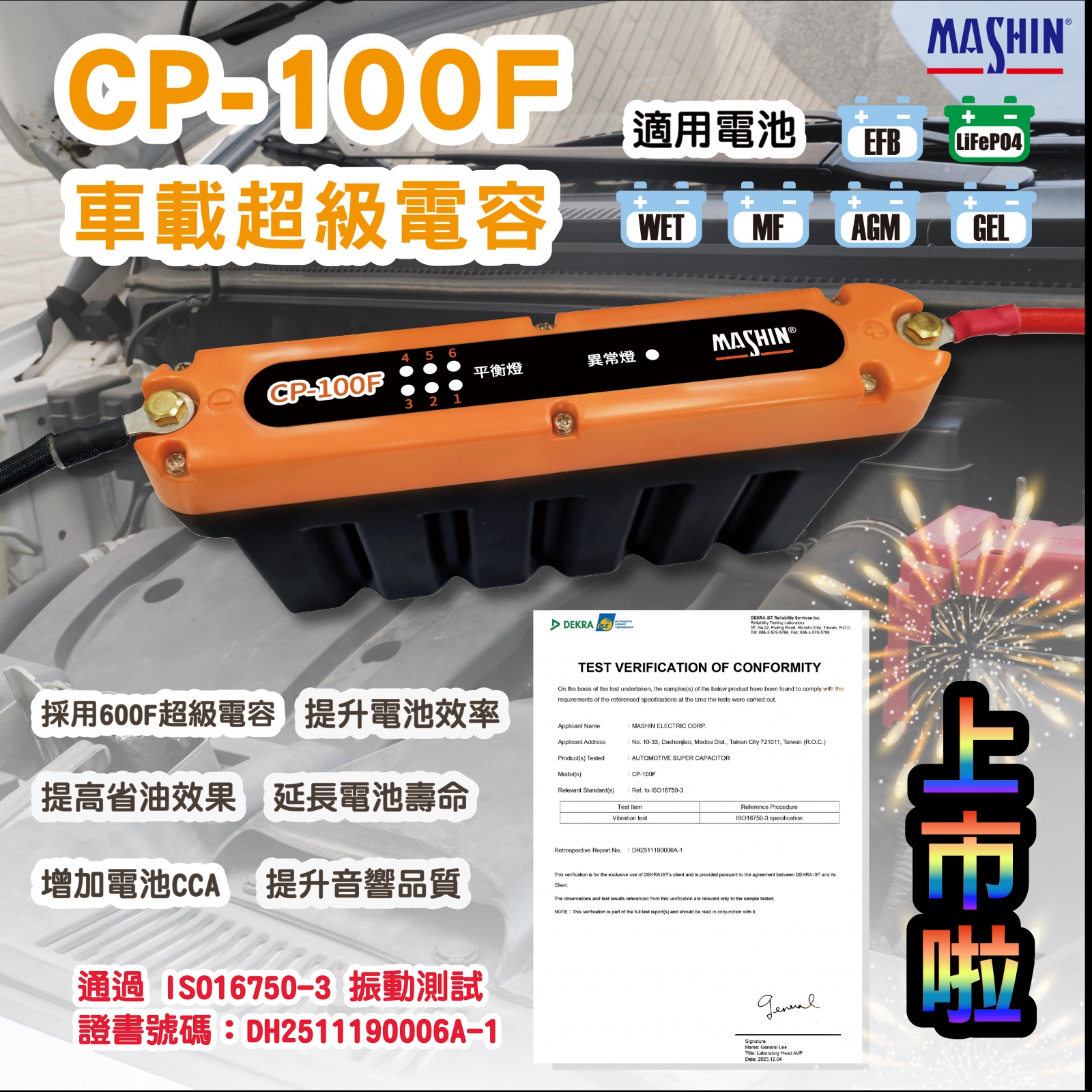

★ Passed ISO 16750-3 vibration testing
.jpg)
Specification
| CP-100F | ||
|---|---|---|
| Model | CP-100F | |
| Voltage | 15V (Max.) | |
| Super Capacitor Brand | Eaton | |
| Capacitor | 600F/6S | |
| Self-discharge Rate | ＜1.5mA | |
| Peak Current | Over 300A | |
| Cable Length | +/-300mm Thermal Insulation Braid Sleeve (500mm cable is optional) | |
| Enclosure Material | High Strength Thermal Insulation PC | |
| BMS | Built-in MCU to balance capacitor voltage automatically | |
| Fireproof Bag | Fireproof Thermal Insulation material / comform to CNS 10285/A2 level 1 standard | |
| Temperature | -30 C~70 C | |
| Design | Mashin | |
| Origin | Taiwan | |
| Dimension(W*L*H) | 249.2*119*44.7mm | |
| Weight | 1.2 kgs | |
| Warranty | 3 years (Human Error or natural qiasters does not cover) | |
Panel
User Manual
File Name
Last Updated
Download
Play
CP-100F 車載超級電容 ｜
2026/02/02
CP-100F車載超級電容 | 說明書 | 影音操作講解
2026/03/06
