PRODUCTS

THE LEADING BRAND AND MANUFACTURER IN TAIWAN.

PRODUCT

Battery Analyzer

Battery Analyzer

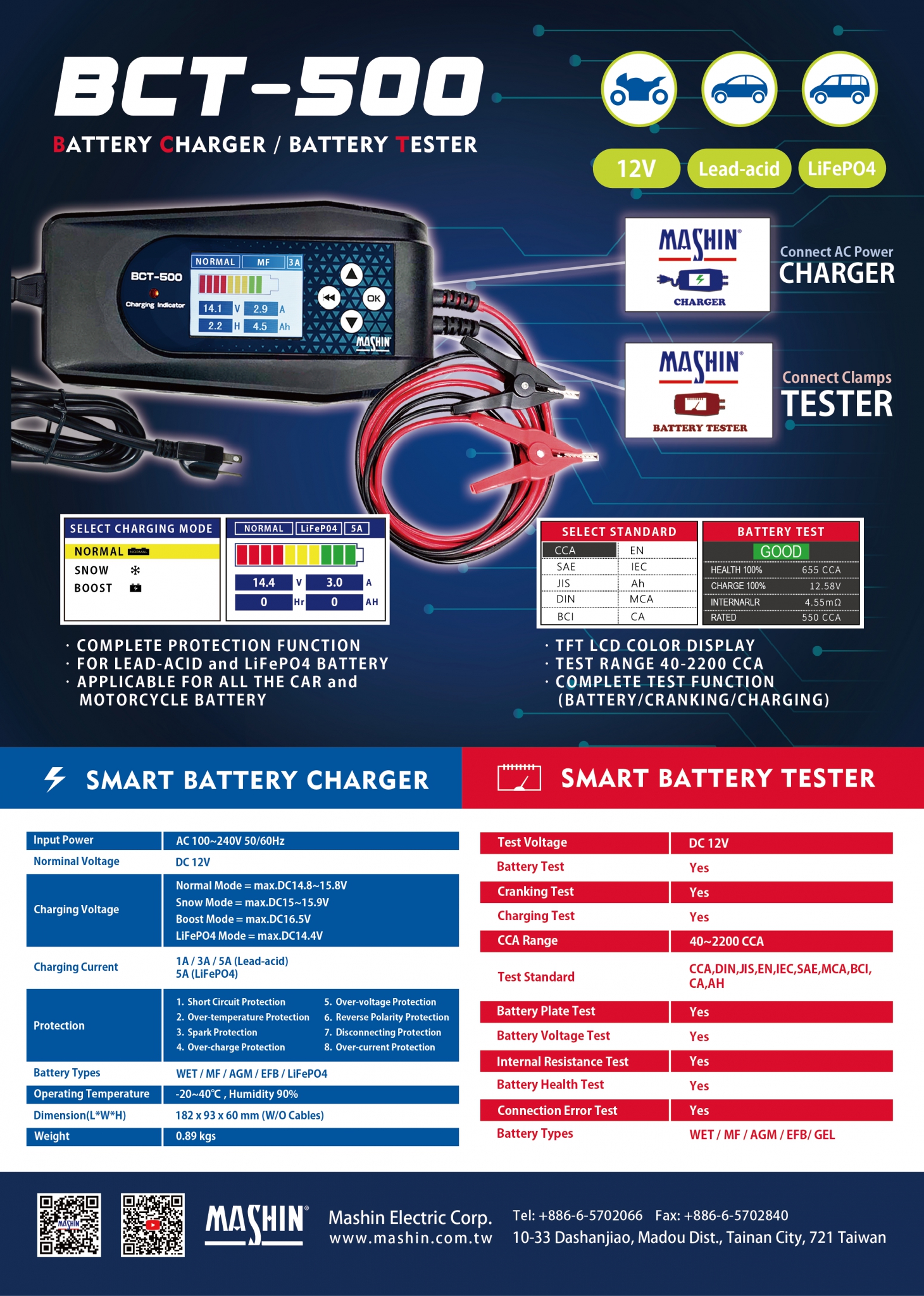

BCT-500 Battery Charger and Battery Analyzer

  • Vehicle
    (圖)Scooter
    (圖)Motorcycle
    (圖)Car
  • Battery
    WET Battery AGM Battery MF Battery EFB Battery LiFePO4 Battery
  • Voltage
    12V

Description

Product

Specification



  BCT-500 (Smart Battery Charger)
  Input Power  AC100V~AC240V 50/60HZ
  Norminal Voltage  DC 12V
  Charging Voltage   Normal Mode = max.DC14.8~15.8V
 Snow Mode = max.DC15~15.9V
 Boost Mode = max.DC16.5V
 LiFePO4 Mode = max.DC14.4V
 Charging Current  1A / 3A / 5A (Lead-acid)
5A (LiFePO4)
  Protection

   1.Short Circuit Protection
 2.Over-temperature Protection
3.Spark Protection
4.Over-charge Protection
  5. Over-voltage Protection
6.Reverse Polarity Protection
7.Disconnecting Protection
8Over-current Protection

  Battery Types  WET / MF / AGM / FEB / LiFePO4
 Operating Temperature  -20~40℃ , Humidity 90%
Dimension(L*W*H) 182 x 93 x 60 mm (W/O Cables)
  Weight  0.89 kgs
   BCT-500 (Smart Battery Tester)
  Test Voltage  DC12V
 Battery Test  Yes
  Cranking Test  Yes
 Charging Test  Yes
CCA Range  40~2200 CCA
  Test Standard  CCA,DIN,JIS,EN, IEC, SAE, MCA, BCI, CA, AH
 Battery Plate Test  Yes
  Battery Voltage Test  Yes
  Internal Resistance Test  Yes
  Battery Health Test  Yes
Connection Error Test  Yes
Battery Types  WET/MF/AGM/EFB/GEL

Panel

User Manual

File Name
Last Updated
Download
Play
BCT-500 Battery Charger and Battery Analyzer | User Manual
2024/10/15
