LiFePO4 Battery

MASHIN X YUXI H4 Battery + Battery Charger

Battery + Battery Charger

Vehicle
Battery
WET Battery MF Battery AGM Battery EFB Battery LiFePO4 Battery LiFePO4 Battery
Voltage
12V

Description

Product

Specification

H5
安培小時(AH)	60
尺寸(LWH)	245 x 175 x 195 mm

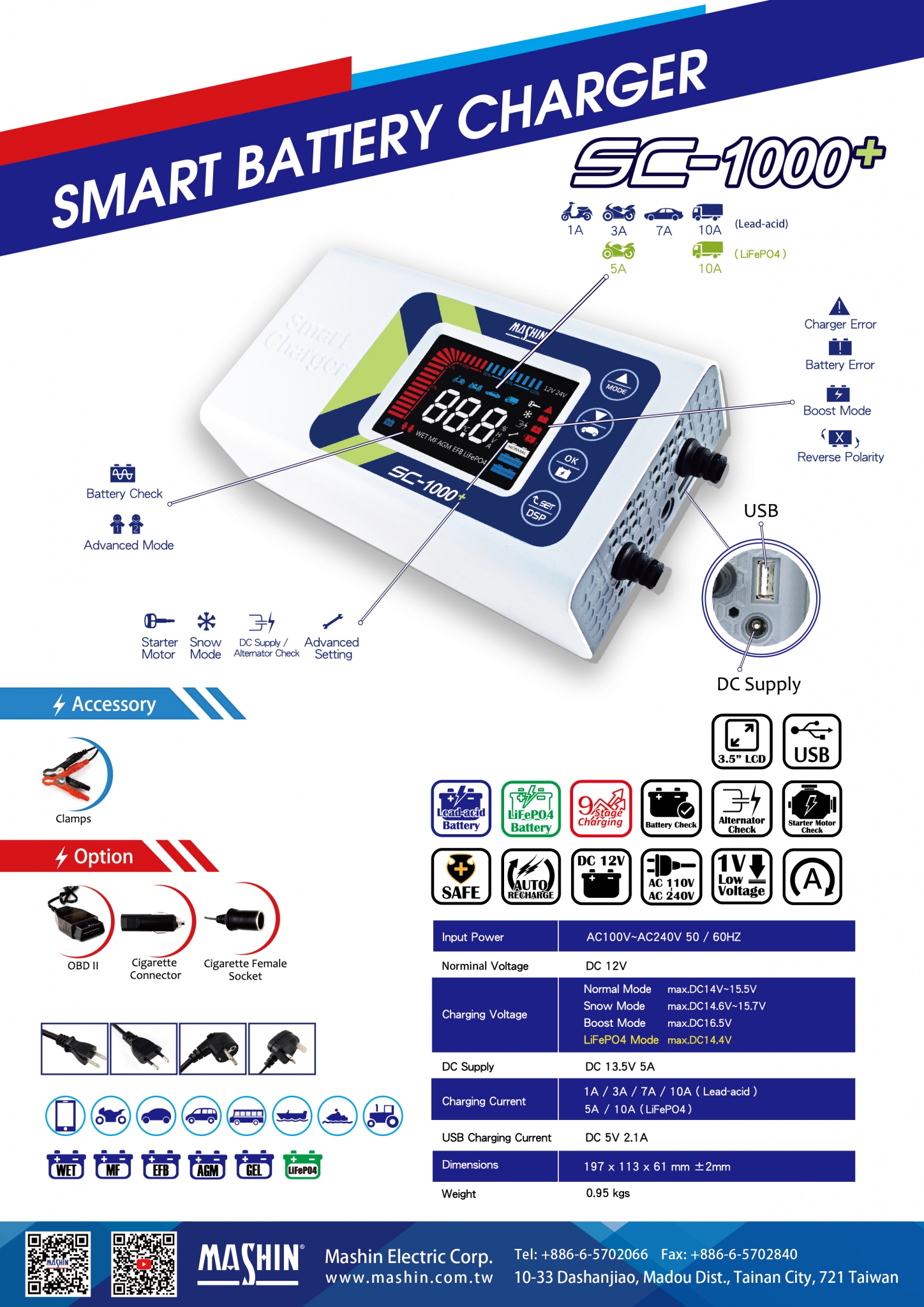

SC-1000＋
Input Power	AC100V~AC240V 50/60HZ
Nominal Voltage	DC 12V
Charging Voltage	Normal Mode = max. DC 14V~15.5V Snow Mode = max. DC 14.6V~15.7V Boost Mode = max. DC 16.5V LiFePO4 Mode = max. DC 14.6V
USB Charging Current	DC 5V / 2.1A
DC Supply	DC 13.5V / 5A
Charging Current	Lead-acid 1A / 3A / 7A / 10A (Current Selectable) LiFePO4 5A / 10A (Current Selectable)
Protection	1. Short Circuit Protection 2. Over-temperature Protection 3. Spark Protection 4. Over-charge Protection 5. Over-voltage Protection 6. Reverse Polarity Protection 7. Disconnecting Protection 8. Over-current Protection
Compatible Battery	WET / MF / AGM / GEL / EFB / LiFePO4
Operating Temperature	-20~ 40°C, Humidity 90%
Dimension ( L x W x H )	197 x 113 x 61 mm ± 2 mm
Weight	0.95 kgs

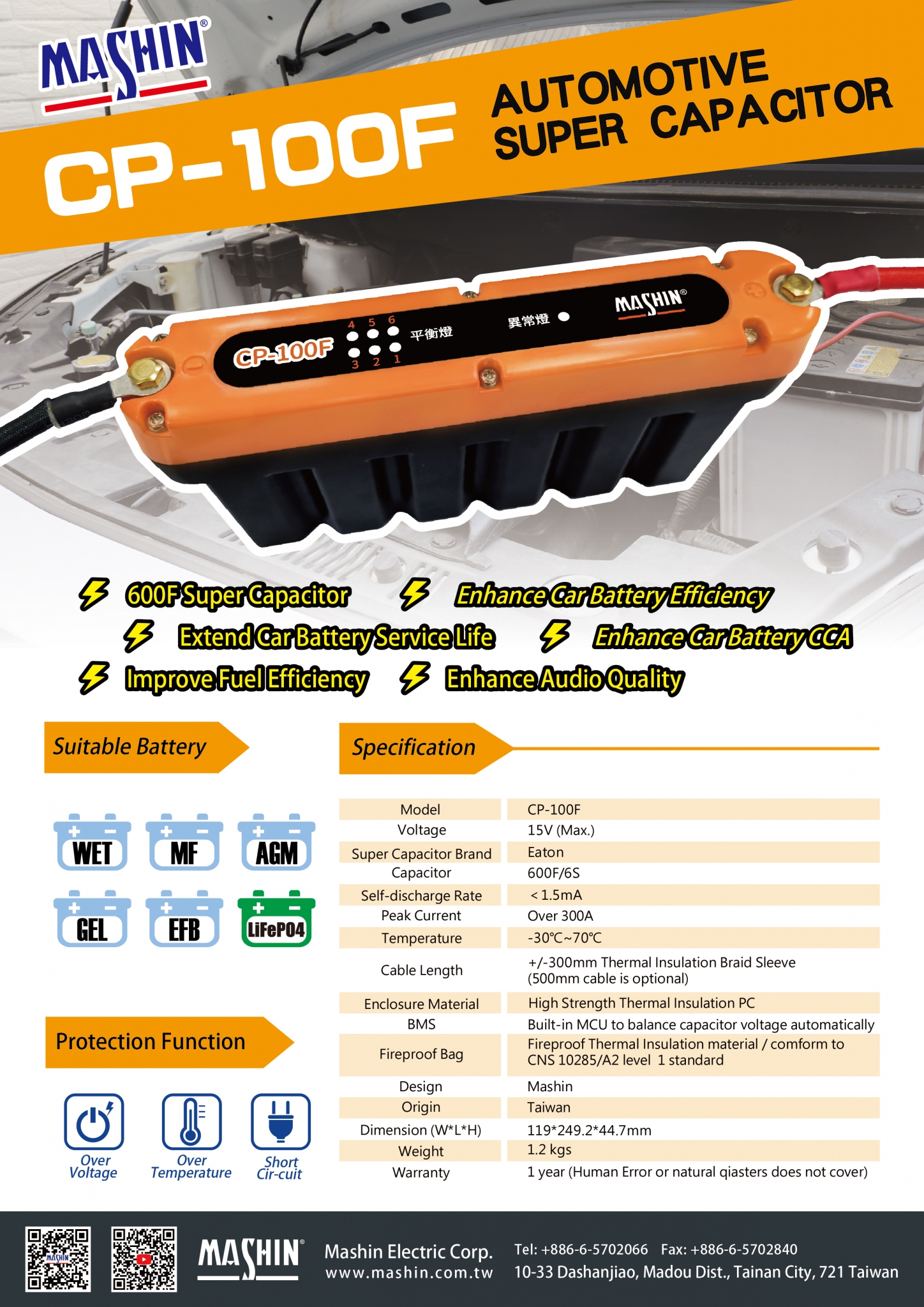

CP-100F
Model	CP-100F
Voltage	15V (Max.)
Super Capacitor Brand	Eaton
Capacitor	600F/6S
Self-discharge Rate	＜1.5mA
Peak Current	Over 300A
Cable Length	+/-300mm Thermal Insulation Braid Sleeve (500mm cable is optional)
Enclosure Material	High Strength Thermal Insulation PC
BMS	Built-in MCU to balance capacitor voltage automatically
Fireproof Bag	Fireproof Thermal Insulation material / comform to CNS 10285/A2 level 1 standard
Temperature	-30 C~70 C
Design	Mashin
Origin	Taiwan
Dimension(WLH)	249.211944.7mm
Weight	1.2 kgs
Warranty	3 years (Human Error or natural qiasters does not cover)

BCT-500 (Smart Battery Charger)
Input Power	AC100V~AC240V 50/60HZ
Norminal Voltage	DC 12V
Charging Voltage	Normal Mode = max.DC14.8~15.8V Snow Mode = max.DC15~15.9V Boost Mode = max.DC16.5V LiFePO4 Mode = max.DC14.4V
Charging Current	1A / 3A / 5A (Lead-acid) 5A (LiFePO4)
Protection	1.Short Circuit Protection 2.Over-temperature Protection 3.Spark Protection 4.Over-charge Protection 5. Over-voltage Protection 6.Reverse Polarity Protection 7.Disconnecting Protection 8Over-current Protection
Battery Types	WET / MF / AGM / FEB / LiFePO4
Operating Temperature	-20~40℃ , Humidity 90%
*Dimension(LWH)*	182 x 93 x 60 mm (W/O Cables)
Weight	0.89 kgs

BCT-500 (Smart Battery Tester)
Test Voltage	DC12V
Battery Test	Yes
Cranking Test	Yes
Charging Test	Yes
CCA Range	40~2200 CCA
Test Standard	CCA,DIN,JIS,EN, IEC, SAE, MCA, BCI, CA, AH
Battery Plate Test	Yes
Battery Voltage Test	Yes
Internal Resistance Test	Yes
Battery Health Test	Yes
Connection Error Test	Yes
Battery Types	WET/MF/AGM/EFB/GEL
