Car/SUV/ATV

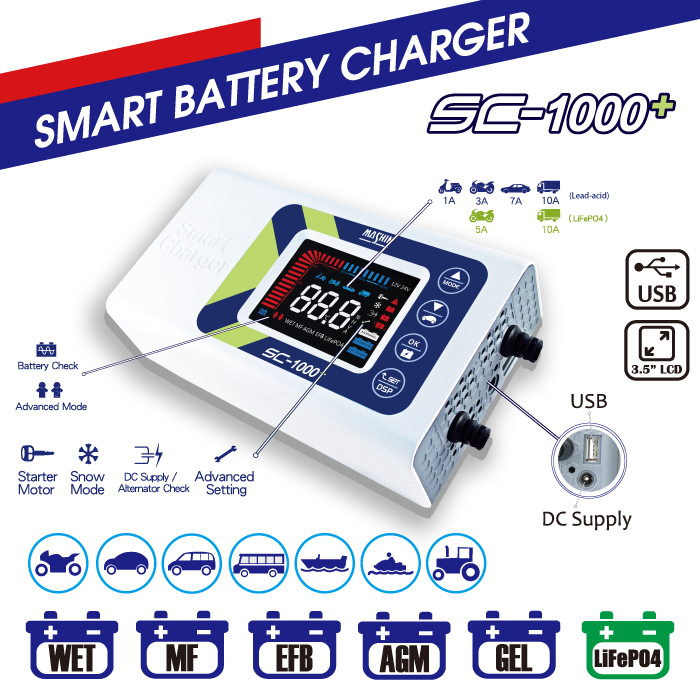

SC-1000+ Smart Battery Charger

SC-1000＋
Input Power	AC100V~AC240V 50/60HZ
Nominal Voltage	DC 12V
Charging Voltage	Normal Mode = max. DC 14V~15.5V Snow Mode = max. DC 14.6V~15.7V Boost Mode = max. DC 16.5V LiFePO4 Mode = max. DC 14.6V
USB Charging Current	DC 5V / 2.1A
DC Supply	DC 13.5V / 5A
Charging Current	Lead-acid 1A / 3A / 7A / 10A (Current Selectable) LiFePO4 5A / 10A (Current Selectable)
Protection	1. Short Circuit Protection 2. Over-temperature Protection 3. Spark Protection 4. Over-charge Protection 5. Over-voltage Protection 6. Reverse Polarity Protection 7. Disconnecting Protection 8. Over-current Protection
Compatible Battery	WET / MF / AGM / GEL / EFB / LiFePO4
Operating Temperature	-20~ 40°C, Humidity 90%
Dimension ( L x W x H )	197 x 113 x 61 mm ± 2 mm
Weight	0.95 kgs
