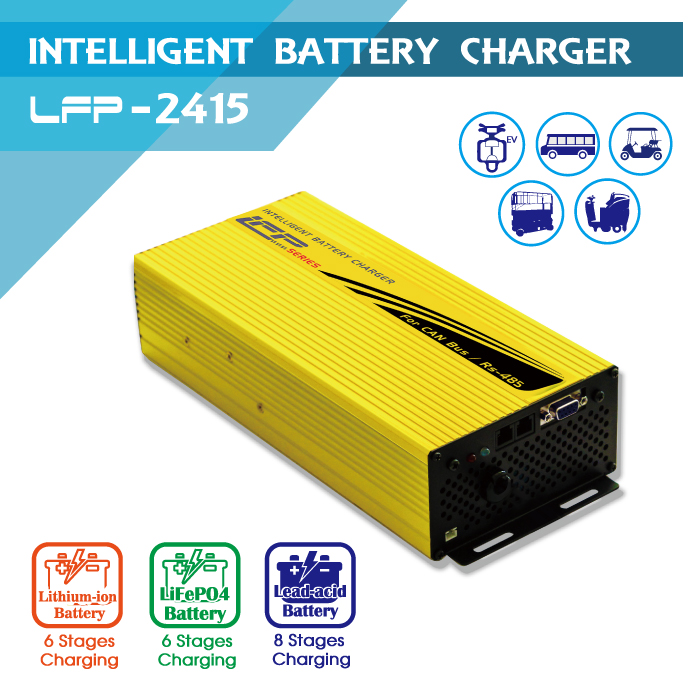

LFP Series 24V 15A Lead-acid Battery Charger

Battery
Lead-acid Battery
Voltage
24V

Description

Product

Specification

LFP-2415 (Lead-acid)
Output	Charging Voltage	28.8V
	Charging Current	15A
	Max. Power	432W
	Efficiency	>91% @ 230V AC (Typical)
Input	Input Power	100 ~ 240 AC
	Frequency	47 ~ 63 HZ
	Current Rating	5A / 115V AC 2.5A / 230V AC
	Power	0.99 @ 115V AC / 0.95 @ 230V AC
	Dimension	307 × 129 × 74 mm
	Weight	2.4 kgs

Panel

User Manual

File Name

Last Updated

Download

Play

LFP-2415 鉛酸電池充電器 | 使用說明書

2023/12/07
