Scooter/Motorcycle

Scooter/Motorcycle

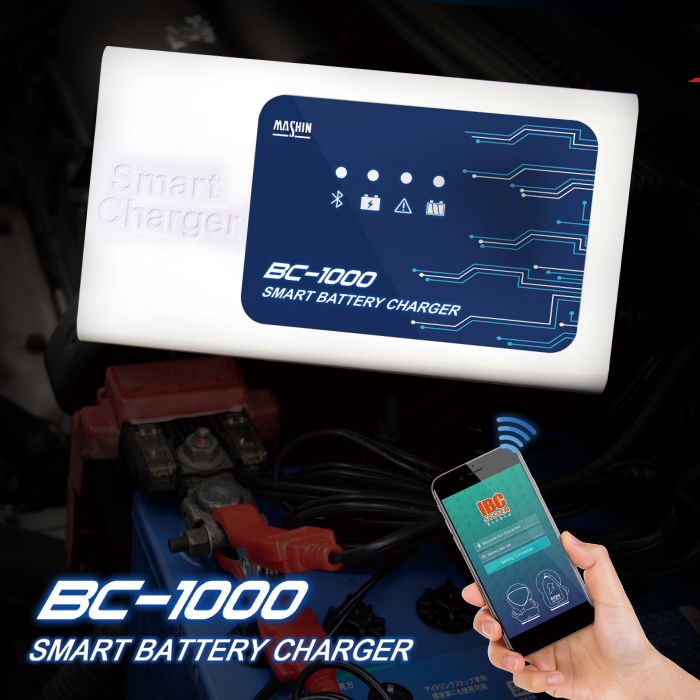

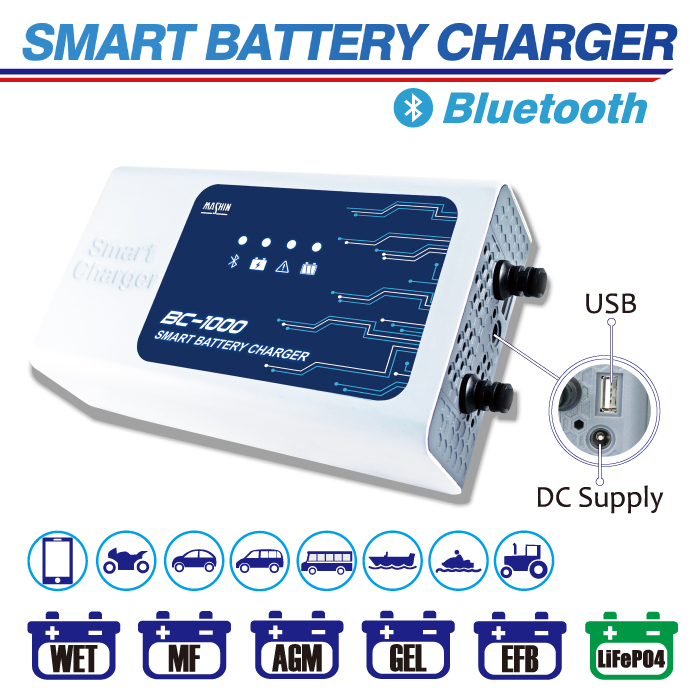

BC-1000 Bluetooth Battery Charger

  • Vehicle
    (圖)Scooter
    (圖)Motorcycle
    (圖)Car
    (圖)Truck
  • Battery
    WET Battery MF Battery AGM Battery EFB Battery LiFePO4 Battery
  • Voltage
    12V

Description

Product










Specification

  BC-1000
  Input Power  AC100V~AC240V 50/60HZ
  Nominal Voltage  DC 12V

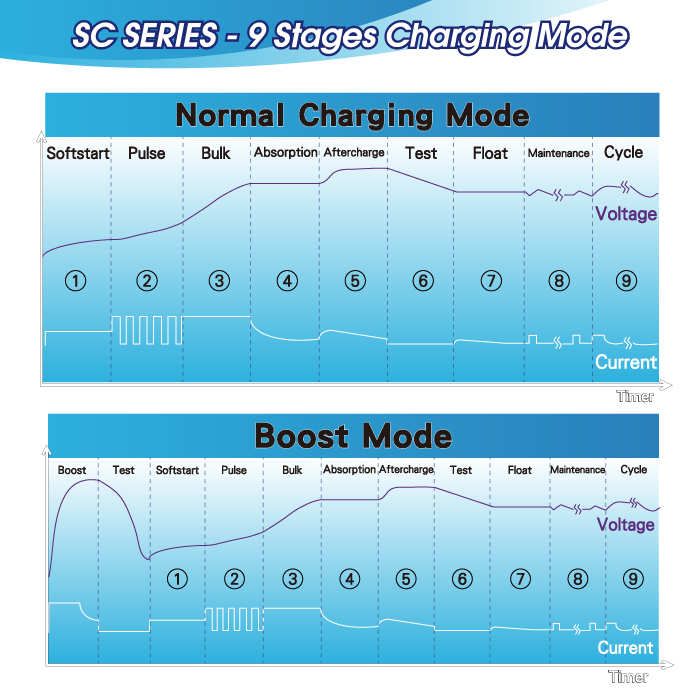

  Charging Voltage   Normal Mode = max. DC 14V~15.5V
  Snow Mode = max. DC 14.6V~15.7V
  Boost Mode = max. DC 16.5V

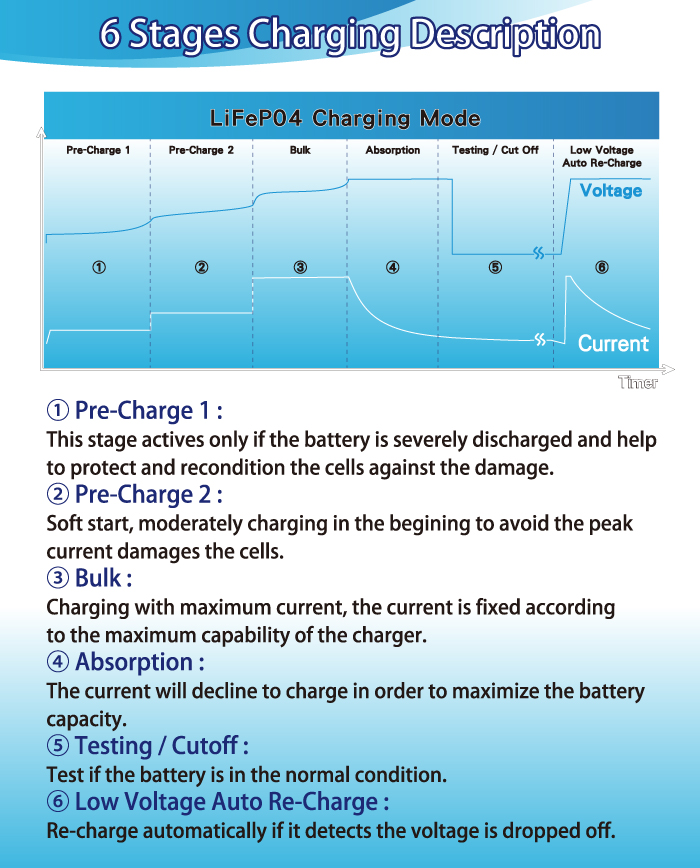

  LiFePO4 Mode = max. DC 14.6V
  USB Charging  DC 5V / 2.1A
  DC Supply  DC 13.5V / 5A
  Charging Current   Lead-acid 1A / 3A / 7A / 10A ( Current Selectable)
  LiFePO4 5A / 10A ( Current Selectable)
  Protection  1. Short Circuit Protection
  2. Over-temperature Protection
  3. Spark Protection
  4. Over-charge Protection
  5. Over-voltage Protection
  6. Reverse Polarity Protection
  7. Disconnecting Protection
  8. Over-current Protection
  Compatible Battery  WET / MF / AGM / EFB / GEL / LiFePO4
  Operating Temperature   -20~ 40°C, Humidity 90%
  Dimension ( L x W x H )    197 x 113 x 61 mm ± 2 mm
  Weight  0.95 kgs

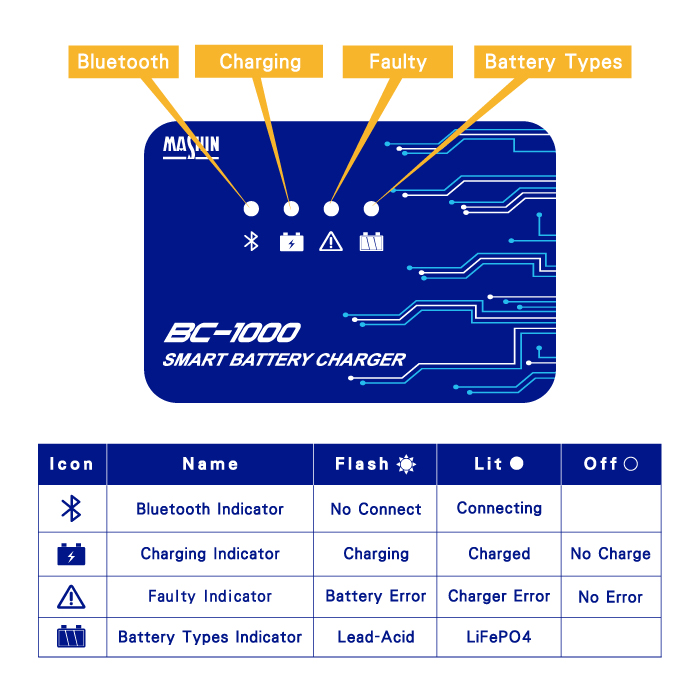

Panel

User Manual

File Name
Last Updated
Download
Play
User Manual【BC-1000】Smart Battery Charger
2022/02/23
Video User Manual【BC-1000】| Testing Program
2022/02/23
Video User Manual【BC-1000】| OBDII Operation
2022/02/23
Video User Manual【BC-1000】| Eyelet M6 Connector Operation
2022/02/23
Video User Manual【BC-1000】| APP Operation IOS Version
2022/02/23
Video User Manual【BC-1000】| APP Operation Android Version
2022/02/23
Video User Manual【BC-1000】| Bluetooth Distance Operation
2022/02/23
Video User Manual【BC-1000】| Snow and Boost Mode Operation
2022/02/23
